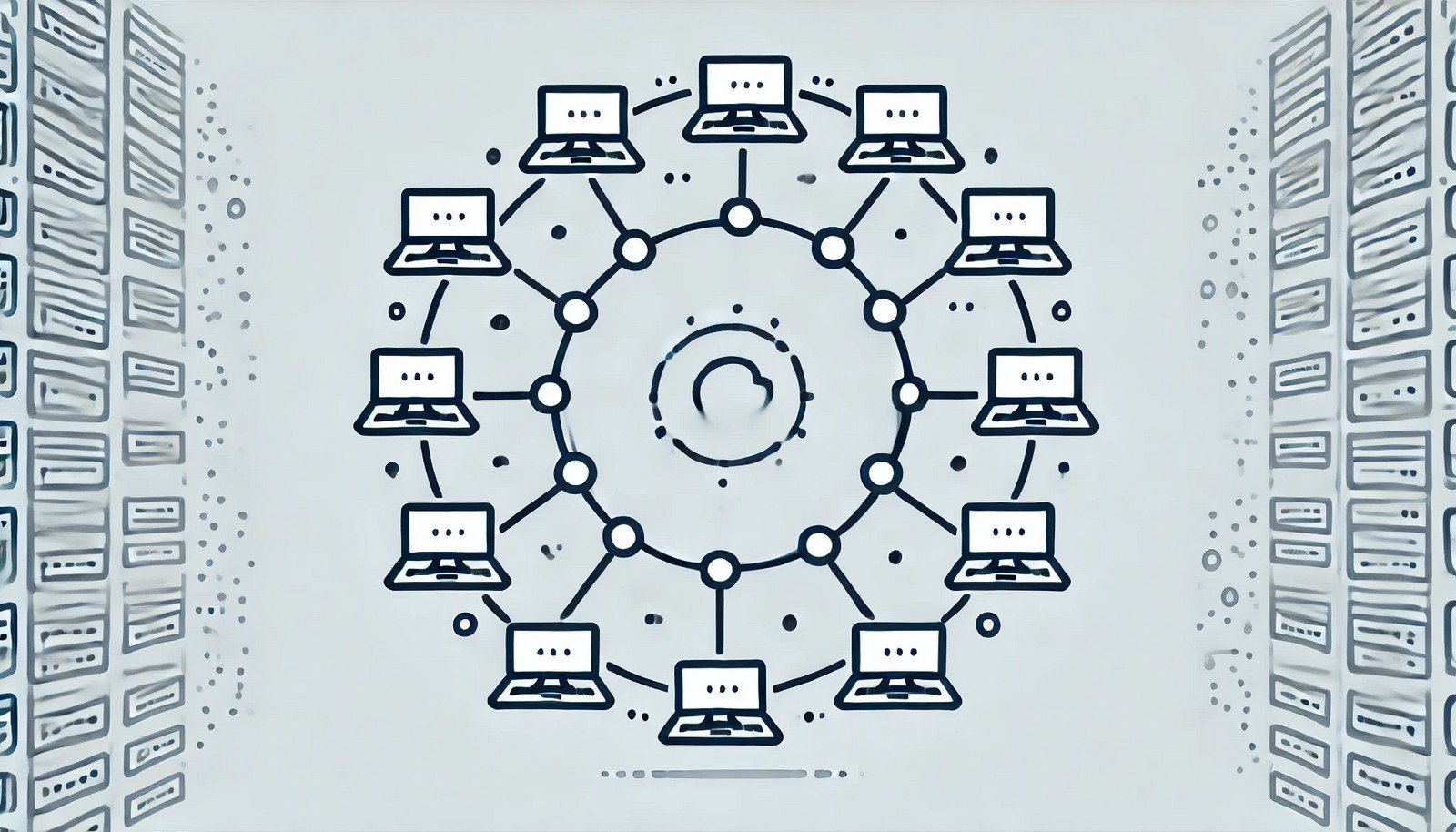

^{(Representational Image | Source: Dall-E)}

Quick Navigation:

• Ring Network Definition
• Ring Network Explained Easy
• Ring Network Origin
• Ring Network Etymology
• Ring Network Usage Trends
• Ring Network Usage
• Ring Network Examples in Context
• Ring Network FAQ
• Ring Network Related Words

Ring Network Definition

A ring network is a type of computer network configuration where each device (node) is connected to exactly two other devices, forming a circular pathway for data transmission. Data travels in one or both directions around the ring, passing through each node until it reaches its destination. This structure is commonly used in local area networks (LANs) and supports reliable data transfer with minimal collisions due to its organized data flow.

Ring Network Explained Easy

Imagine a group of friends standing in a circle and passing a message around. Each person receives the message, looks at it, and if it’s not for them, passes it to the next person until it reaches the right one. In a ring network, computers are like these friends, and the message is the data being passed around.

Ring Network Origin

Ring network topology emerged during the development of early computer networks in the late 20th century. It became widely used in Token Ring networks introduced by IBM in the 1980s, which offered an alternative to Ethernet for reliable data transfer.

Ring Network Etymology

The term “ring network” stems from its circular structure, resembling a ring, where data flows along a continuous path.

Ring Network Usage Trends

Though ring networks were once popular in LANs and metropolitan area networks (MANs), they have declined in use with the rise of more flexible and scalable topologies like star and mesh networks. However, they are still relevant in some specialized environments, such as industrial automation and fiber optic networks.

Ring Network Usage

• Formal/Technical Tagging: Network Topology, Computer Networks, Data Communication
• Typical Collocations: "ring network topology," "Token Ring," "fiber optic ring," "dual ring network"

Ring Network Examples in Context

• Token Ring networks used ring topology to ensure organized data transmission in office LANs.
• Modern fiber optic networks utilize ring topology for redundancy and fault tolerance.
• A dual ring network helps provide backup paths in case of a node failure, ensuring high availability.

Ring Network FAQ

• What is a ring network?
  A ring network is a network topology where each device is connected in a circular layout, with data traveling around the ring.
• How does a ring network work?
  Data travels in one direction (or both in a dual-ring setup) through each device until it reaches its intended destination.
• What are the advantages of a ring network?
  Advantages include simple data flow management, reduced collision risk, and fault tolerance in dual-ring setups.
• What are the disadvantages of a ring network?
  A single point of failure in a traditional ring network can disrupt communication for all devices.
• What is Token Ring technology?
  Token Ring is a network protocol developed by IBM that uses a token-passing method on a ring topology.
• Is a ring network suitable for modern applications?
  It’s less common in general networking but still used in specific areas like industrial networks.
• What is a dual ring network?
  A dual ring network has two rings for data flow, providing redundancy in case one ring fails.
• How does a ring network differ from a star network?
  In a star network, devices are connected to a central hub, while in a ring network, each device connects to two others in a circular pattern.
• Can ring networks be wireless?
  Typically, ring networks are wired, but similar logical topologies can be applied in wireless environments.
• What industries use ring networks?
  Industries like telecommunications, industrial automation, and transportation still use ring topologies for reliable data transmission.

Ring Network Related Words

• Categories/Topics: Computer Networks, Network Topology, Data Communication

Did you know?
Ring networks are still preferred in critical applications like power grid communication systems, where their redundancy and reliability ensure continuous monitoring and control.
